Custom N52 Magnets Manufacturer in China
N52 magnet is one of the highest energy grades of sintered neodymium iron boron magnets, offering exceptional magnetic strength in a compact size. With high remanence and strong holding force, N52 neodymium magnets are widely used in motors, sensors, magnetic assemblies, electronics, tools, fixtures and high-performance industrial applications.
As a custom N52 magnet supplier, we manufacture N52 NdFeB magnets in disc, block, ring, cylinder, arc, segment, countersunk and special shapes according to your drawings or samples. Different coatings, magnetization directions and tolerances are available to meet your application requirements.
What Is an N52 Magnet?
An N52 magnet is a high-performance neodymium magnet grade with a maximum energy product of approximately 50 to 53 MGOe. Compared with lower grades such as N35, N42 or N48, N52 magnets can provide stronger magnetic force in the same volume, making them suitable for applications where space is limited but magnetic strength is critical.
N52 magnets are ideal when you need:
- Higher holding force in a smaller magnet size
- Compact magnetic assemblies
- Strong pull force for industrial fixing or mounting
- High magnetic flux for sensors and magnetic couplings
- Custom magnet solutions for OEM products
Key Features of N52 Magnets
Ultra-Strong Magnetic Force
N52 magnets provide one of the highest magnetic strengths available in commercial permanent magnets.
Compact Yet Powerful
Smaller N52 magnets can achieve the same holding force as larger lower-grade magnets, helping reduce product size and weight.
Excellent Performance
Suitable for precision industrial applications requiring high magnetic energy density.
Multiple Customization Options
Available in custom dimensions, tolerances, coatings, and magnetization orientations.
Corrosion Resistance
Optional protective coatings improve durability in humid and harsh environments.
N52 Magnet Specifications
| Property | Value |
|---|---|
| Material | Neodymium Iron Boron (NdFeB) |
| Grade | N52 |
| Max Energy Product | 50–53 MGOe |
| Remanence (Br) | 14.2–14.8 kGs |
| Coercivity (Hcb) | ≥10.8 kOe |
| Intrinsic Coercivity (Hcj) | ≥12 kOe |
| Working Temperature | Up to 80°C (176°F) |
| Density | 7.4–7.6 g/cm³ |
| Coating Options | NiCuNi, Epoxy, Zinc, Gold, PTFE, Custom |
Available Shapes for N52 Magnets
We supply custom N52 magnets in a wide range of geometries:
- Ímanes em disco
- Ímanes em anel
- Ímanes em bloco
- Arc / Segment Magnets
- Ímanes embutidos
- Ímanes em barra
- Rod Magnets
- Sphere Magnets
- Trapezoid Magnets
- Custom Irregular Shapes
Surface Coating Options
Different coatings are available depending on your application environment:
| Revestimento | Features |
|---|---|
| Ni-Cu-Ni | Standard industrial protection |
| Epoxi | Strong moisture resistance |
| Zinco | Economical anti-corrosion coating |
| Ouro | Decorative and conductive |
| PTFE | Chemical resistance |
| Rubber | Impact protection |
Applications of N52 Magnets
Electric Motors & Generators
N52 magnets improve torque density and energy efficiency in compact motor systems.
Magnetic Separation Equipment
Strong magnetic fields help capture fine ferrous particles in industrial processing.
Eletrónica de consumo
Used in smartphones, audio devices, wireless charging systems, and precision components.

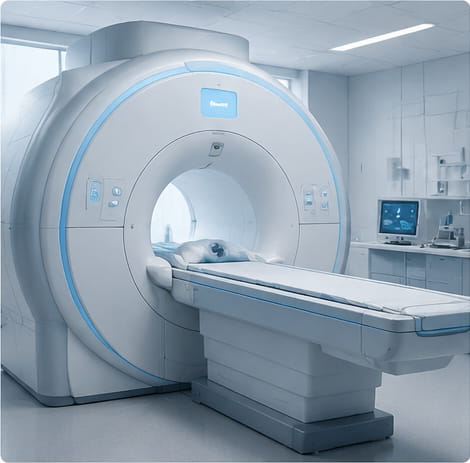

Dispositivos médicos
Applied in MRI equipment, medical instruments, and diagnostic technologies.
Energias renováveis
Widely used in wind turbines and high-efficiency energy conversion systems.
Robótica e Automação
Ideal for precision positioning systems and automated manufacturing equipment.
Why Choose Us as N52 Magnets Supplier?
Advanced Technology
Precision sintering and machining technology ensure stable magnetic performance and dimensional accuracy.
Strict Quality Control
Every batch undergoes comprehensive magnetic and dimensional testing.
Custom Manufacturing Support
OEM and ODM services available for industrial projects.
Fast Global Shipping
Reliable export experience serving customers worldwide.
Competitive Factory Pricing
Direct manufacturer pricing with flexible MOQ options.
Custom N52 Magnet Services
We provide complete customization services including:
- Custom dimensions and tolerances
- Special magnetization directions
- Magnetização multipolar
- High-temperature grades
- Custom coatings
- Magnetic assemblies
- Packaging solutions
- Laser marking and branding
FAQ About N52 Magnets
N52 refers to a high-performance grade of neodymium magnet. The number indicates its maximum energy product range, which is approximately 50 to 53 MGOe.
N52 is one of the strongest commonly available grades of sintered neodymium magnets. It provides very high magnetic strength in a compact size.
Standard N52 magnets usually work up to 80°C. If your application requires higher operating temperature, high-temperature grades such as N52M or N52H may be more suitable.
Yes. We can produce custom N52 magnets according to your drawings, samples or technical requirements, including custom shape, size, coating, tolerance and magnetization direction.
Ni-Cu-Ni is the most common coating for N52 magnets. For humid or corrosive environments, epoxy coating or other protective solutions may be recommended.
Request a Quote
Looking for a reliable N52 magnet manufacturer in China? Contact us today for custom solutions, technical support, samples, and competitive wholesale pricing.
